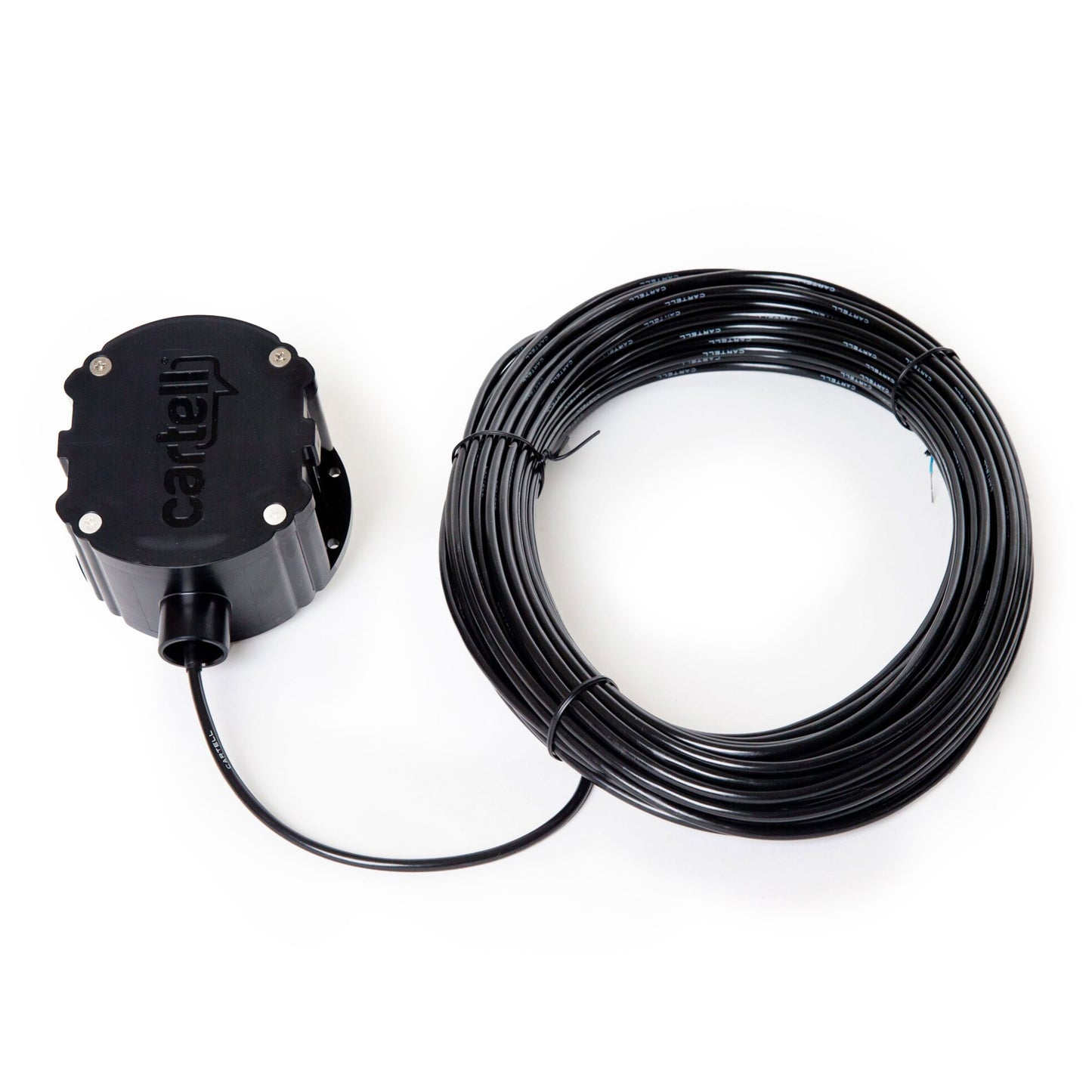

100' Wired Exit Probe

FEATURES

Low Standby Current for Solar Compatibility Easy Sensitivity Adjustment High Impact Plastic Housing Rated to Handle up to 19,000 Pounds Digital Circuit Weather Resistant Cable Self Contained System Conduit Ready Housing.

SPECS

• Power Required: 8–24 VAC
• 8–30 V DC Standby Current: 30–70 microamps (μA)
• max.Alarm Current: 40–50 milliamps (mA)
• max.Relay Contacts: SPDT, floating,
• N.O. or N.C. (Form C) Relay Contact Rating: 1 amp/24 VDC(1 mA at 5 VDC min. load)
• Relay Time: 2–3 seconds
• Temperature Range: -25°F–140°F IP
• Rating: 68
