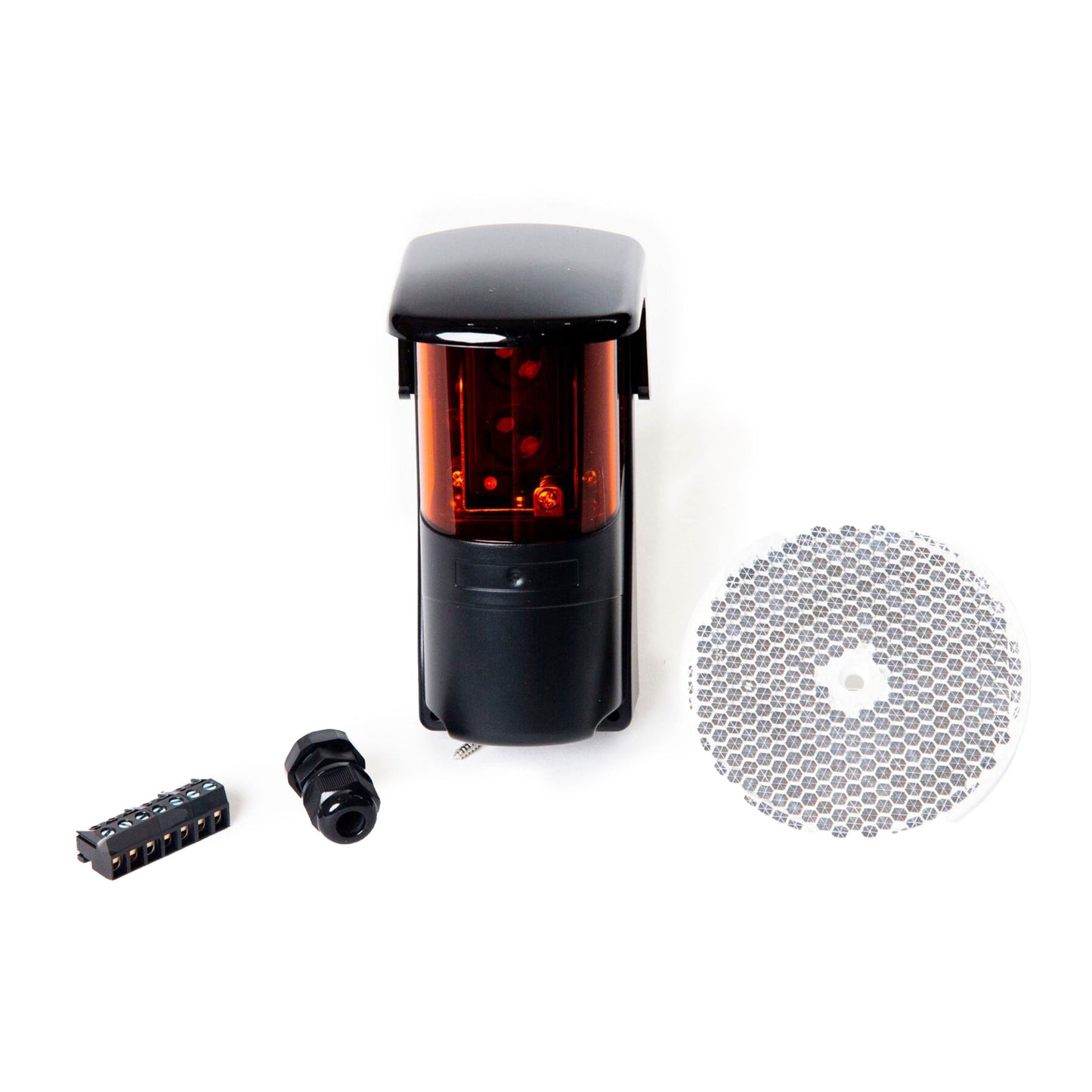

Photobeam

FEATURES

Works with N.O. and N.C. 32 Foot Range Polarized safety sensor Retro-reflective type NEMA 4X(IP-66) waterproof/cable gland Red infrared LED element PMMA upper casing, anti fog/dew/rain Round shape reflector – Diameter 3 1/4” Twin colors LED indicator for beam alignment.

SPECS

• Input volt: 12-250 VAC/DC (non polarity)
• Tx LED element: Red Infrared/Wave length 740 nm
• Beam spreading angle: 1.5° (half angle)
• Contact capacity: 0.5A/120VAC (1A/30VDC)
• Response time: 10 msec
• Delay time of relay: 100 msec
• Sensing range: 32 feet
• LED indicators:
• Red LED off: Beam aligned / Red LED on: Beam broken
• Red LED flash: Beam alignment signal weak (re-align)
• Green LED on: Beam aligned proper
• Additional function: Tamper switches
• Wiring connection: Terminal block/ Cable gland (NEMA 4X(IP-66)
• Housing material: Bottom casing: ABS / Upper casing: PMMA
• IP: NEMA 4X(IP-66)
• Environment/storage temp.: -13°F to 140°F / -31°F to 176°F
• Dimension: 4-5/6(L) 2-1/4 (W) 2-1/4 (D) inches
