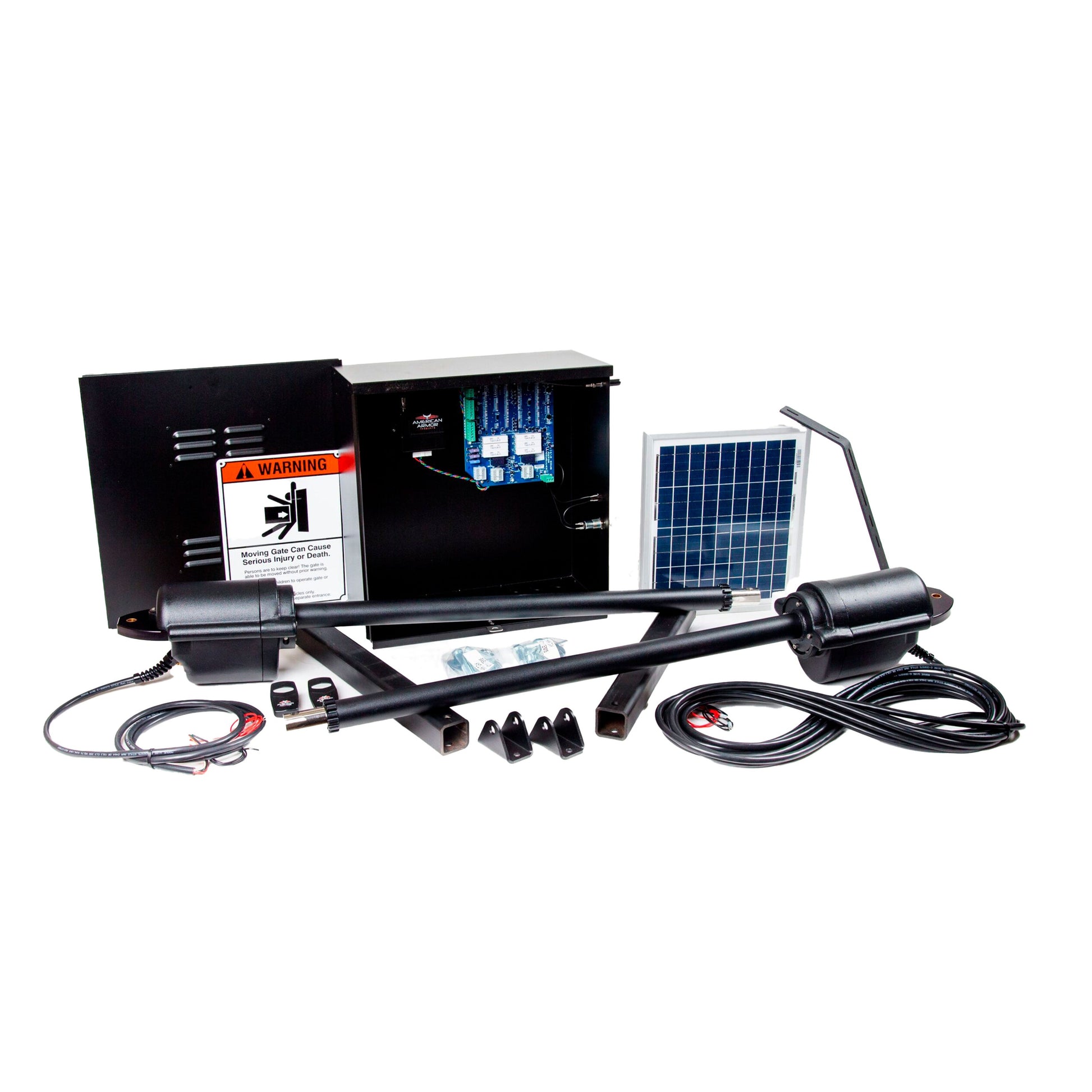

Ranch Hand Dual 10W Operator Kit

FEATURES

For use with Dual/Double Gates 12VDC Main Power allows for Green Energy Solar Applications 10W Polycrystalline solar panel for 8 to 20 Cycles Per Day (Location Dependent) Optional 110V AC Power options available For Use with up to 15 foot 500 pounds per Gate Remote control opening and closing HomeLink compatible for Vehicle Programing All Powder Coated Aluminum and Steel construction for Increased Durability All-Metal Gearing for Longer Operating Life Weld-On (Standard) and Bolt-On Hinge Post Attachment Available Compatible with Non-Monitored Safety Devices Standard connections for Automatic Exit Devices and Keypads

SPECS

• Input Voltage: 12VDC
• Output Voltage: 3 Separate
• Connections 12VDC 1.5A
• Operating Temp Range: -10 Deg F to 150 Deg F
• Maximum Speed: 1 Foot per Second
• Maximum Gate Weight: 500 lbs per gate (800 lbs with Long/Heavy Gate Kit Accessory)
• Maximum Gate Length: 15 Foot per gate (20 foot with Long/Heavy Gate Kit Accessory) Attachment Point Sizes: ½ INCH
• Wireless Frequency: 300 Mhz Standard (310 Mhz & 433 Mhz Available upon request)
• Limit Switches: Sealed Contact Switches with Over Stroke Capability
• Hinge Post Attachment: Weld-On Standard (Bolt-On Available)
