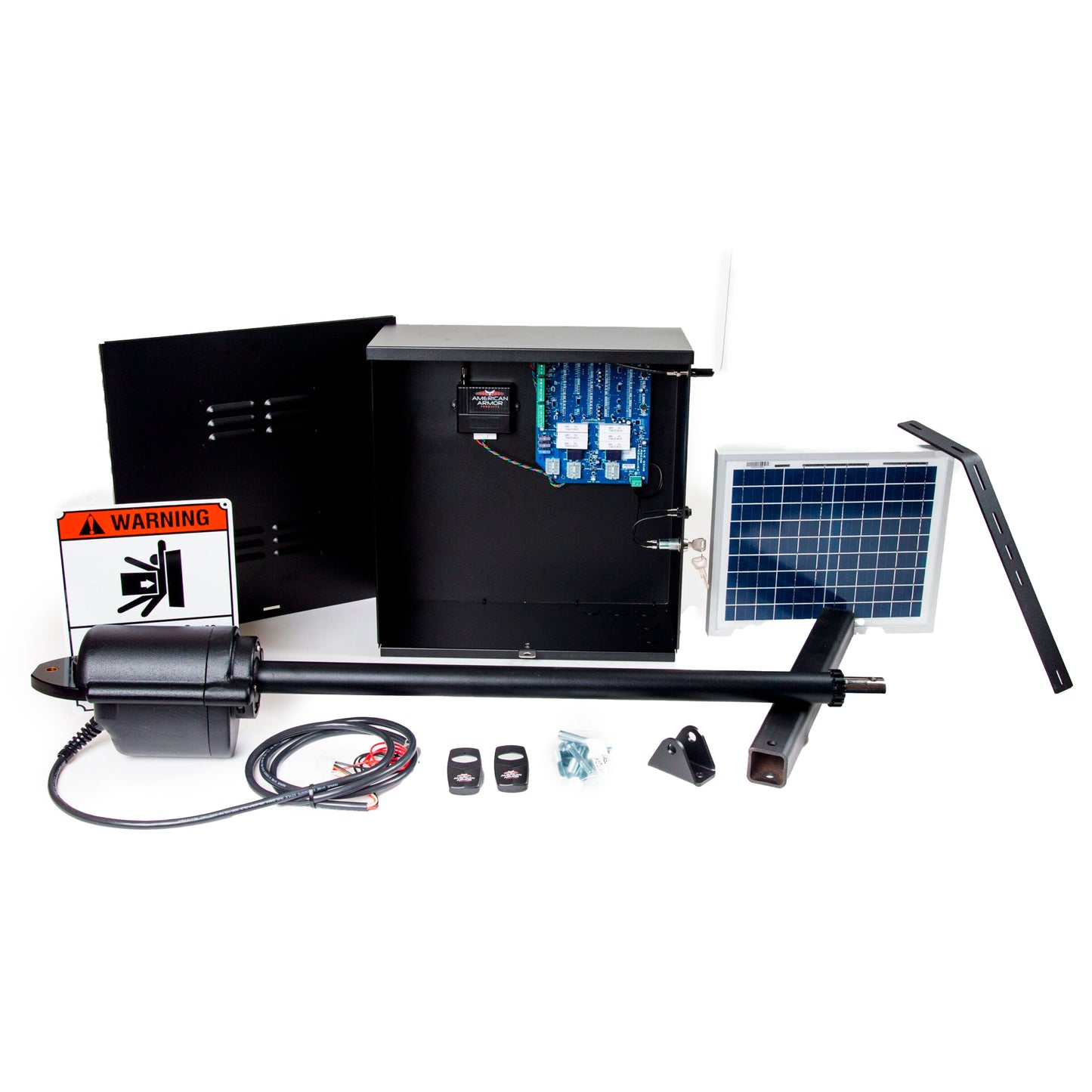

Ranch Hand Single 10W Operator Kit

FEATURES

For use with Single Gate 12VDC Main Power allows for Green Energy Solar Application 10W Polycrystalline solar panel for 8 to 20 Cycles Per Day (Location Dependent) Optional 110V AC Power options available For Use with up to 16 foot 500 pounds per Gate Remote control opening and closing HomeLink Compatible for Vehicle Programing All Powder Coated Aluminum and Steel construction for Increased Durability All Metal Gearing for Longer Operating Life Weld On (Standard) and Bolt On Hinge Post Attachment Available Compatible with Non Monitored Safety Devices Standard connections for Automatic Exit Devices

SPECS

• Input Voltage: 12VDC
• Output Voltage: 3 Separate Connections 12VDC 1.5A
• Operating Temp Range: -10 Deg F to 150 Deg F
• Maximum Speed: 1 Foot per Second
• Maximum Gate Weight: 500 lbs per gate (800 lbs with Long/Heavy Gate Kit Accessory)
• Maximum Gate Length: 16 Foot per gate (20 foot with Long/Heavy Gate Kit Accessory)
• Attachment Point Sizes: ½ INCH
• Wireless Frequency: 300 Mhz Standard (310 Mhz & 433 Mhz Available upon request)
• Limit Switches: Sealed Contact Switches with Over Stroke Capability
• Hinge Post Attachment: Weld On Standard (Bolt On Available)
