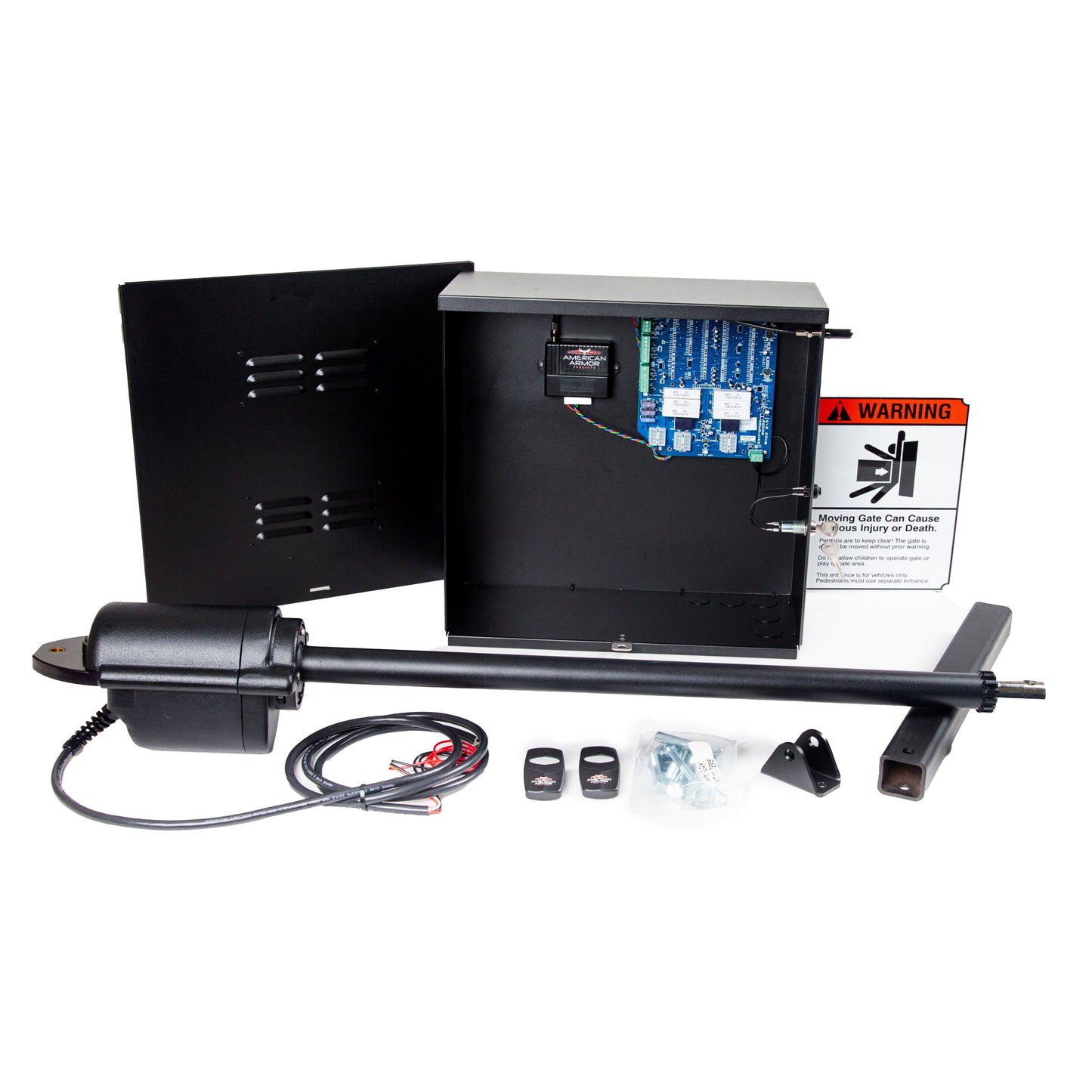

Ranch Hand Single Operator Kit

FEATURES

For use with Single Gates 12VDC Main Power allows for Green Energy Solar Applications Optional 110V AC Power options available For Use with up to 16 foot 500 pound Single Gates Remote control opening and closing HomeLink compatible for Vehicle Programing All Powder Coated Aluminum and Steel construction for Increased Durability Easily Accessible Limit Switches for Quick and Easy Adjustment All Metal Gearing for Longer Operating Life Weld On (Standard) and Bolt On Hinge Post Attachment Available Compatible with Non Monitored Safety Devices Standard connections for Automatic Exit Devices and Keypads.

SPECS

• Input Voltage: 12VDC
• Output Voltage: 3 Separate
• Connections 12VDC 1.5A
• Operating Temp Range: -10 Deg F to 150 Deg F
• Maximum Speed: 1 Foot per Second
• Maximum Gate Weight: 500 lbs (800 lbs with Long/Heavy Gate Kit Accessory)
• Maximum Gate Length: 16 Foot (20 foot with Long/Heavy Gate Kit Accessory)
• Attachment Point Sizes: ½ INCH
• Wireless Frequency: 300 Mhz Standard (310 Mhz & 433 Mhz Available upon request)
• Limit Switches: Sealed Contact Switches with Over Stroke Capability
• Hinge Post Attachment: Weld-On Standard (Bolt-On Available)
